TeBiPlay Architecture

TeBiPlay is built on a modern, scalable architecture that leverages the power of Flask for the backend and Nuxt 3 for the frontend. This section provides an overview of the system architecture and the technologies used.

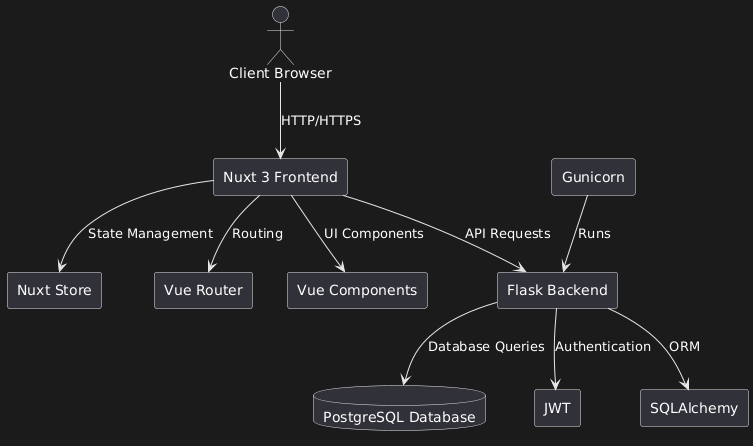

High-Level Architecture

Backend Architecture

The backend of TeBiPlay is built with Flask, a lightweight WSGI web application framework in Python. It provides a robust foundation for the API and business logic.

• Flask: Web framework for building the API
• SQLAlchemy: ORM for database interactions
• Flask-JWT-Extended: For handling JWT authentication
• PostgreSQL: Relational database for data storage
• Gunicorn: WSGI HTTP Server for production deployment

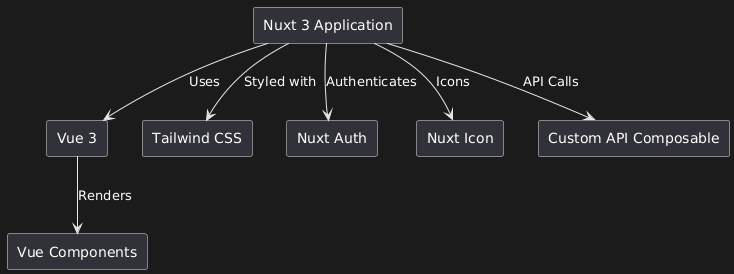

Frontend Architecture

The frontend is built with Nuxt 3, a powerful Vue.js framework that provides an excellent developer experience and optimal performance.

• Nuxt 3: Vue.js framework for building the user interface
• Vue 3: Progressive JavaScript framework
• Tailwind CSS: Utility-first CSS framework for styling
• Nuxt Auth: Authentication module for Nuxt.js
• Nuxt Icon: Easy icon usage in Nuxt applications

Database Schema

TeBiPlay uses a relational database schema to manage the complex relationships between users, players, teams, games, and matches.

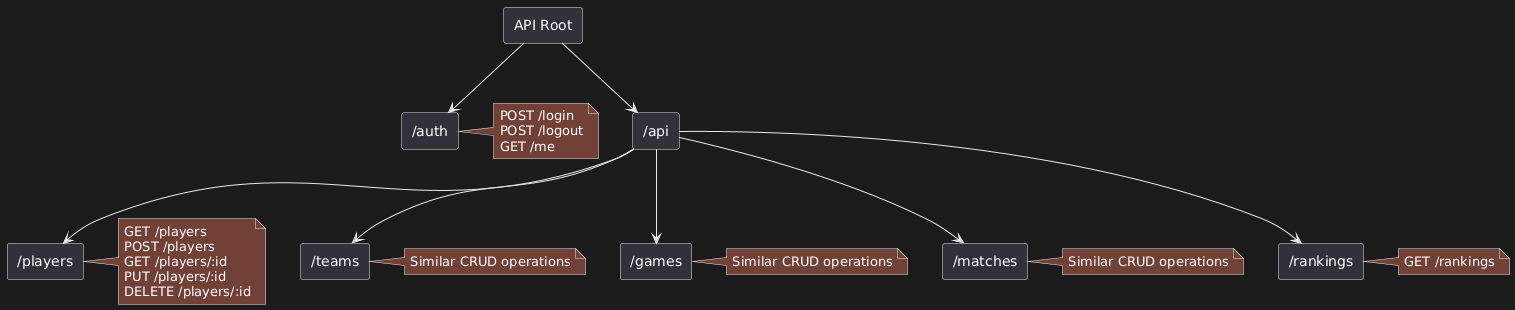

API Architecture

The backend exposes a RESTful API that the frontend consumes. The API is organized around resources:

• /auth: Authentication endpoints
• /api/players: Player management
• /api/teams: Team management
• /api/games: Game management
• /api/matches: Match creation and result management
• /api/rankings: Ranking calculations and retrieval

Each endpoint provides standard CRUD operations where applicable:

• GET: Retrieve resource(s)
• POST: Create a new resource
• PUT: Update an existing resource
• DELETE: Remove a resource

For example, the /api/players endpoint supports:

GET /api/players         # List all players
POST /api/players        # Create a new player
GET /api/players/:id     # Retrieve a specific player
PUT /api/players/:id     # Update a specific player
DELETE /api/players/:id  # Delete a specific player

Similar patterns are followed for other resources like teams, games, and matches.

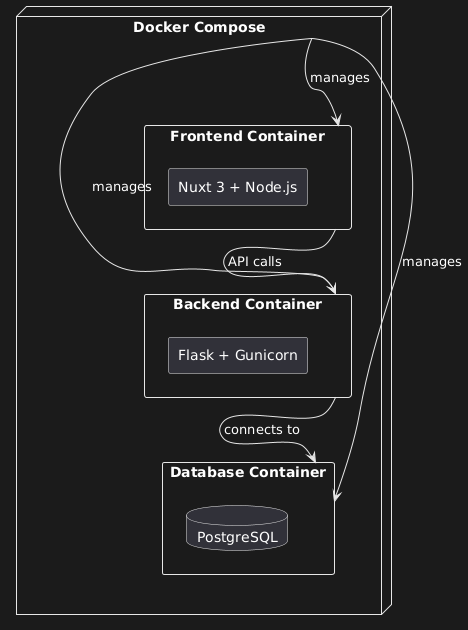

Deployment Architecture

TeBiPlay is designed for easy deployment using Docker containers, ensuring consistency across different environments.
